Y524

TAILORED TO PERFORM - Y524

Always getting the job done

Y524
Size & Specs

Y524

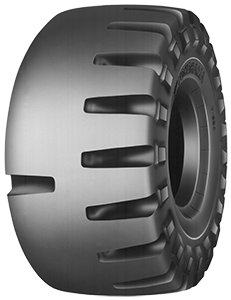

Y524 L-5

For loaders and dozers

Specially designed for use under highly abrasive conditions
Unique profile with side protector for improved resistance to shoulder & sidewall cuts

Y524Z L-5 HALF SLICK

For loaders and dozers

Ideal for rock, coal and ore mining environment.
Half slick asymmetric tread pattern is specifically designed for superior tread and sidewall cut resistance.

Tire Dozer

Front End Loader

Front End Loader

Y524 Size and Specs

Select your tire size

To view tire specs for your application select from one of the available sizes below.

Click to see all sizes and specs

SIZE	PART #	STAR MARK	COMPOUND	GROOVE DEPTH	RIM SIZE	OVERALL DIAMETER (INCHES)	OVERALL WIDTH (INCHES)	STATIC LOADED RADIUS (INCHES)	STATIC LOADED WIDTH (INCHES)	WEIGHT (LBS)
23.5-25 20 Y524 L-5 TL CP	130152404	20 Ply	CP	111	19.50-2.5	65.6	24.4	30.1	26.1	1039.32
29.5-29 28 Y524 L-5 TL CP	130152409	28 Ply	CP	134	25.00-3.5	80.3	30.4	36	32.7	1857.25
35/65-33 30 Y524 L-5 TL CP	130152412	30 Ply	CP	121	28.00-3.5	81.7	35.4	37.5	36.7	2588.77
45/65-45 38 Y524 L-5 TL CP	130152417	38 Ply	CP	145	36.00-4.5	107.9	46.5	49.6	48.4	5128.64
45/65-45 50 Y524 L-5 TL CP	130152420	50 Ply	CP	145	36.00-4.5	107.9	46.5	49.6	48.4	5384.66
29.5-25 28 Y524 L-5 TL CP	130152423	28 Ply	CP	140	25.00-3.5	75.1	30.5	34.2	32.5	1883.61
29.5-25 28 Y524 L-5 TL CP	130152431	28 Ply		140	25.00-3.5	75.1	30.5	34.2	32.5	1889.67
26.5-25 32 Y524 L-5 TL CP	130152434	32 Ply	CP	122	22.00-3.0	70.7	26.9	32.3	28.4	1407.41
35/65-33 42 L-5 Y524A TL CP	130152436	42 Ply	CP	121	28.00-3.5	81.7	35.4	37.5	36.7	2683
45/65-45 58 Y524Z L-5 TL CP	130152440	58 Ply	CP	145	36.00-4.5	107.9	46.5	49.6	48.4	5870.74
45/65-45 58 Y524 L-5 TL CP	130152442	58 Ply	CP	145	36.00-4.5	107.9	46.5	49.6	48.4	5642.95
35/65-33 42 L-5 Y524Z TL CP	130152443	42 Ply	CP	121	28.00-3.5	81.3	35.7	37.6	36.8	2818.28
40/65-39 56 Y524 L-5 CP	130152455	56 Ply	CP	133	32.00-4.0	94.6	40.4	46	42	3920.09
